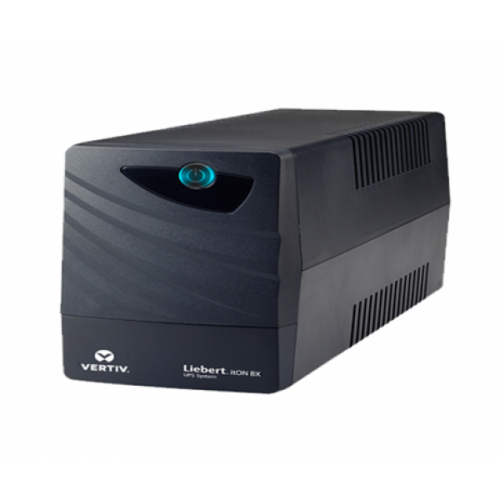

Vertiv 1000 VA Offline UPS

Brand : Emerson(Vertiv)

Country of Origin : USA

MODEL : Cx 1000VA

Capacity : 1000VA/600W

Input

Voltage : 220/230Vac

Voltage Range : 140-300VAC

Frequency Range : 50 Hz

Output

Ac Voltage regulation(batt. Mode) : ±10%

Frequency Range(batt. Mode) : 50 Hz±1 Hz

Transfer time : Typical 2-6 ms

Waveform(batt.Mode) : Simulated Sine Wave

Over load : 100% ± 10% shutdown after 5 minutes

Battery

Battery type & Number : 12V/7Ahx2

Typical recharge time : 6-8 hours up to 90% capacity

Transfer time

Minimum line break for transfer o battery : Typical 4-8 msec

Indicators

AC Mode : Green lighting

Battery Mode : Green Flashing

Fault : Red Lighting

ALARMS

Battery Mode,low battery,over load,Battery replacement,fault : Audiable alarm is provided

Protection

Full Protection : Over load,discharge and overcharge protection

Physical

Dimension,DxWXH(mm) : 369x141x160

Environment

Operating Environment : 0-40 deg C

Stroage temp : -15 to 50 Deg C

Humidity : 0-95 % RH @ 0-40 degree C( non -condensing)

Noise level : Less than 40db
